- Comply with European Standard EN54 parts 2 and 4.
- Attractive 450 x 720 x 127mm cabinet.
- Up to 64 eight-loop peer to peer panel network capacity.
- Hi-integrity and single-path networking options. Ability to assign individual zones across the network.
- Very flexible cause and effects.
- Wide range of Switch & Indicator modules.
- Multiple 'A-Bus' expansion PCBs (I/O Units, Relays, etc).
- User-friendly full colour touchscreen with dynamic buttons and virtual QWERTY keyboard.
- 40 separate and programmable zonal LEDs.
- Up to 38 characters of custom text per loop device.
- Automatic daylight saving (BST/GMT) mode.
- 20,000+ event memory (filterable by fire, fault & date).
- Non-fire supervisory event functionality.
- Optional thermal printers.
- Well-designed cabinets with easily removable electronics chassis.
- 20-way heavy-duty brass earth bar as standard.
- 72-hour standby (+ 30 min alarm) in Medium cabinets.
- Built-in loop status & current-reading.
- Powerful engineering and commissioning functions including SafeMode and DeviceManager.
- Attractive Compact Controllers.
- Wide range of flush-fit bezels
- Powerful and intuitive PC programming tools

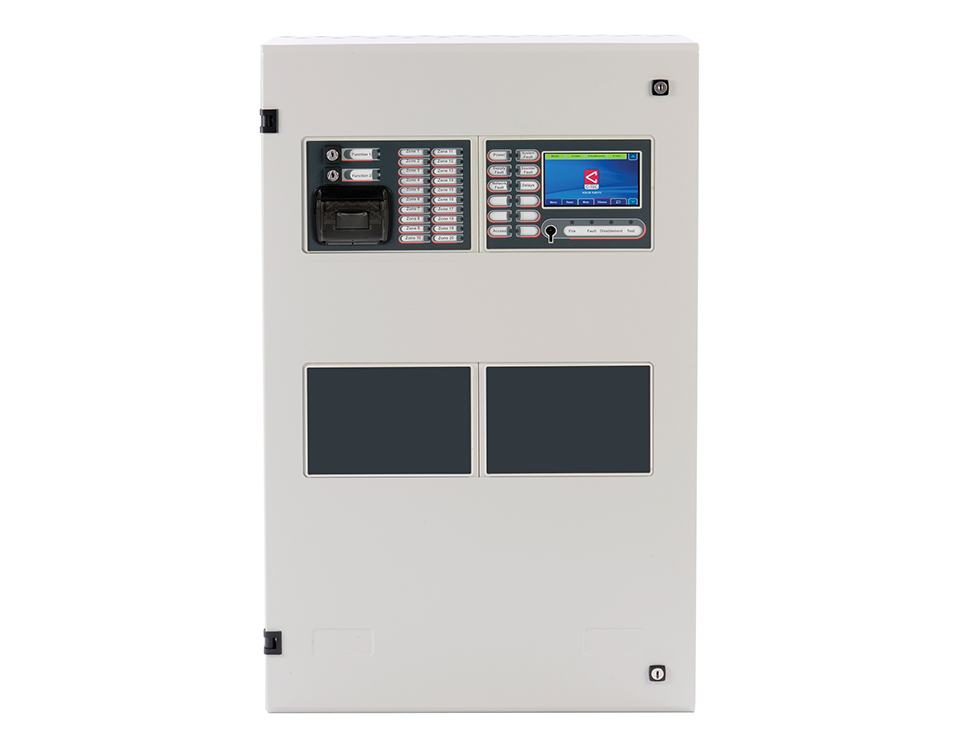

C-TEC Addressable Fire Panel 6 Loop
C-TEC Addressable Fire Panel 6 Loop
