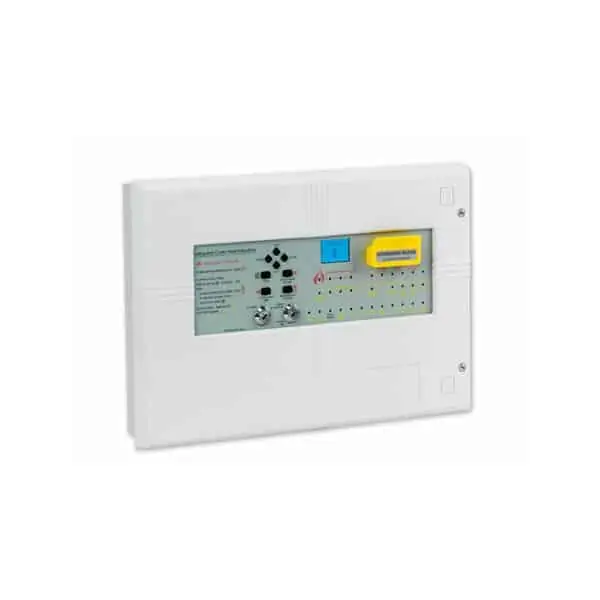

Certified to EN54-2/4 and EN12094-1 by the Loss Prevention Certification Board (LPCB) Functions as a standard 3 zone fire panel with additional circuitry for controlling the release of fire-suppressing gas. 128 x 64 pixel display. Any combination of activated zones can be programmed to automa ...

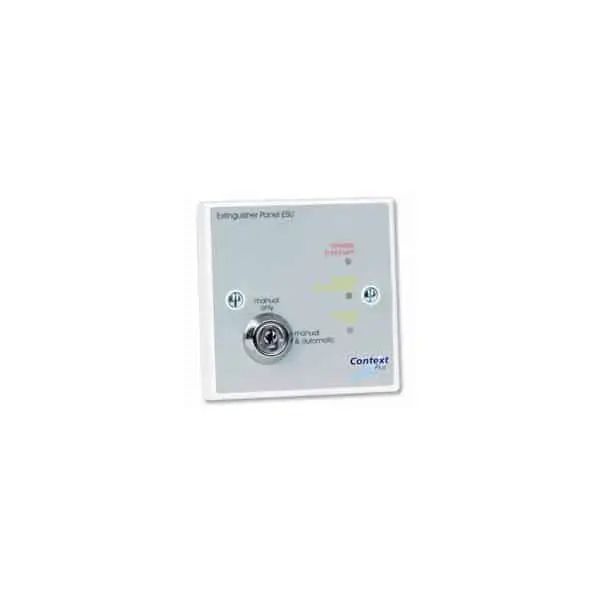

Power requirements: 21-28VDC (100mA electronic fuse). Quiescent current: 5mA. Auxiliary inputs: None. Indicators: Release Imminent; Manual/Automatic operation; Manual Only operation. Controls: Operation keyswitch (Manual only or Manual & Auto). Product dimensions (mm): 87 W x 87 H x 35 D ...

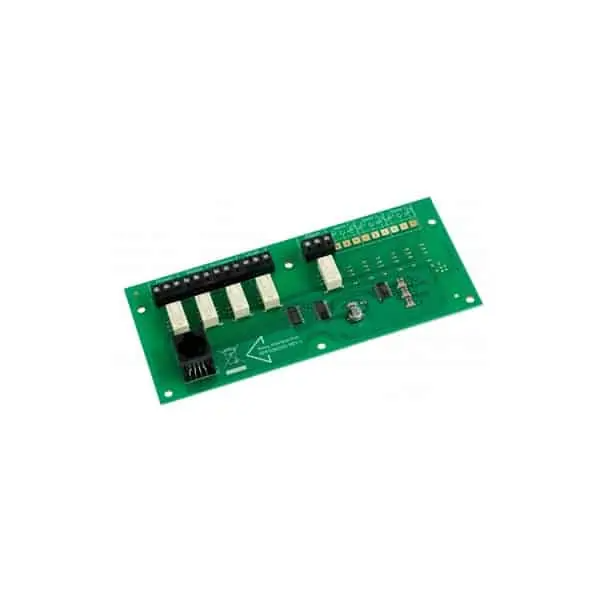

An optional system expansion device for use with the EP203/CON three zone automatic extinguisher panel. Mounts inside the EP203/CON panel to provide five volt free relay contacts (reset, mode, discharged, hold and abort). Reset relay switches during the panel’s reset cycle. Mode relay s ...

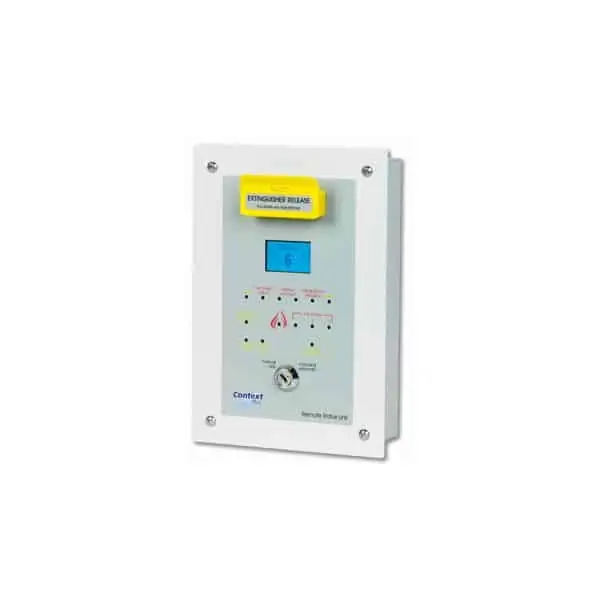

Power requirements: 21-28VDC (200mA electronic fuse). Quiescent current: 7mA. Auxiliary inputs: Three: (1) Hold; (2) Abort; (3) Mode. A 6k8 EOL resistor must be fitted across the terminals of the last device on each monitored input circuit. Unused circuits must have the 6k8 resistor fitted at th ...

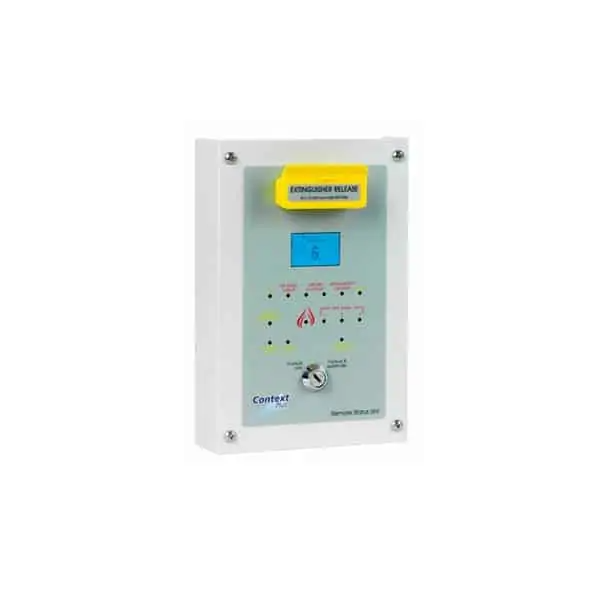

Power requirements: 21-28VDC (200mA electronic fuse). Quiescent current: 7mA. Auxiliary inputs: Three: (1) Hold; (2) Abort; (3) Mode. A 6k8 EOL resistor must be fitted across the terminals of the last device on each monitored input circuit. Unused circuits must have the 6k8 resistor fitted at th ...

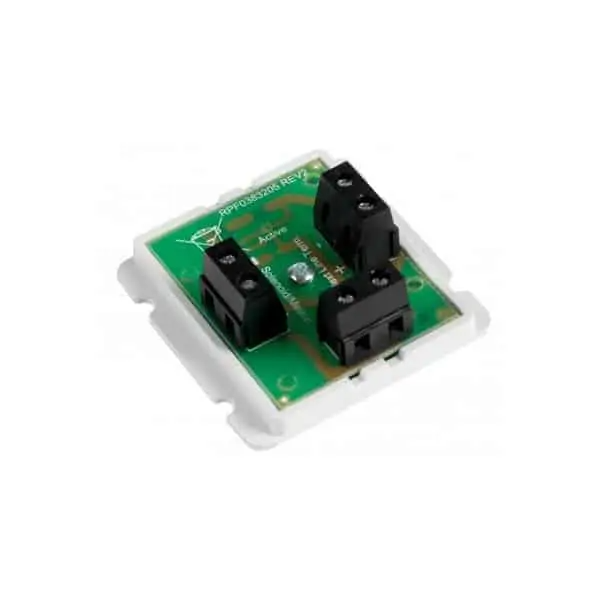

Indicators: Active LED (illuminates red when the EP203's extinguishant output is active). Connections: Solenoid/Metron (+Ve & -Ve); Panel (+Ve & -Ve); Next line term. (+Ve & -Ve). Max. cable size 1.5mm. Product dimensions (mm): 55mm W x 55mm H x 22mm D. Weight: 26g. Notes: For sole ...
